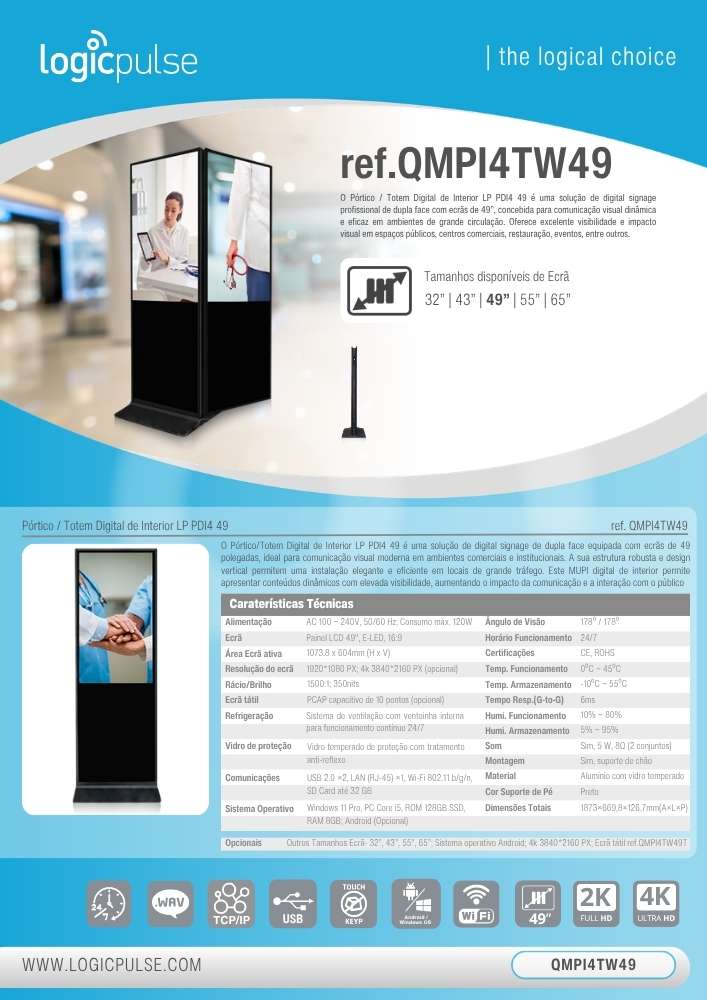

LP PDI4 49 Indoor Digital Totem
The LP PDI4 49 Indoor Display Totem is a professional double-sided digital signage solution with 49” screens, designed for dynamic and effective visual communication in high-traffic environments. It offers excellent visibility and visual impact in public spaces, shopping centers, restaurants, events, and more.
RefQMPI4TW49
The LP PDI4 49 Indoor Digital Totem is a double-sided digital signage solution equipped with 49-inch displays, ideal for modern visual communication in commercial and institutional environments. Its robust structure and vertical design allow for an elegant and efficient installation in high-traffic locations. It enables the display of dynamic digital content with high visibility, increasing communication impact and audience interaction.
- Power Supply: AC 100~240V, 50/60 Hz; Max. consumption 120W
- Display: LCD panel 49", E-LED, 16:9
- Active Display Area: 1073.8 x 604mm (H x V)
- Screen Resolution: 1920×1080 PX; 4K 3840×2160 PX (optional)
- Contrast/Brightness: 1500:1; 350 nits
- Touch Screen: PCAP capacitive, 10 points (optional)
- Cooling: Ventilation system with internal fan for continuous 24/7 operation
- Protective Glass: Tempered protective glass with anti-reflection treatment
- Connectivity: USB 2.0 ×2, LAN (RJ-45) ×1, Wi-Fi 802.11 b/g/n, SD Card up to 32 GB
- Operating System: Windows 11 Pro, PC Core i5, ROM 128GB SSD, RAM 8GB; Android (optional)
- Viewing Angle: 178° / 178°
- Operating Time: 24/7
- Certifications: CE, ROHS
- Operating Temperature: 0°C ~ 45°C
- Storage Temperature: -10°C ~ 55°C
- Response Time (G-to-G): 6ms
- Operating Humidity: 10% ~ 80%
- Storage Humidity: 5% ~ 95%
- Sound: Yes, 5 W, 8Ω (2 sets)
- Mounting: Yes, floor support
- Material: Aluminum with tempered glass
- Stand Color: Black
- Total Dimensions: 1873 × 669,8 × 126,7mm (H×W×D)
- Optional: Other screen sizes – 32", 43", 55", 65"; Android operating system; 4K 3840×2160 PX; Touch screen ref. QMPI4TW49T
